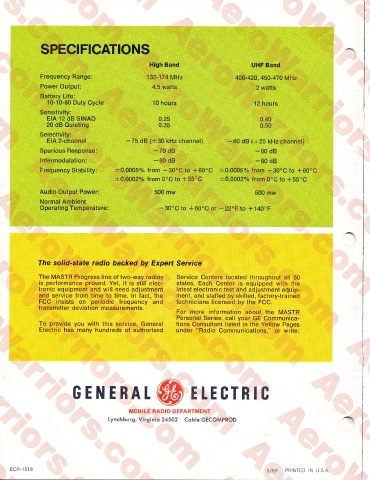

SPECIFICATIONS

High Band UHF Band
Frequency Range: 132-174 MHz 406-420, 450-470 MHz
Power Output: 4.5 watts 2 watts
Battery Life:
10-10-80 Duty Cycle 10 hours 12 hours
Sensitivity:
EIA 12 dB SINAD 0.25 0.40
20 dB Quieting 0.35 0.50
Selectivity:
EIA 2-channel — 75 dB (±30 kHz channel) — 60 dB (±25 kHz channel)

Spurious Response: -70 dB -60 dB
Intermodulation: — 60dB -60 dB
Frequency Stability: ±0.0005% from -30°Cto +60°C IT O .0005% from -30°Cto +60°C
±0.0002% from 0°C to +55°C ±0.0002% from 0°C to +55°C

Audio Output Power: 500 mw 500 mw
Normal Ambient
Operating Temperature: — 30°Cto + 60°C or -22°Fto +140°F

The solid-state radio backed by Expert Service

The MASTR Progress line of two-way radios Service Centers iocated throughout all 50
is performance proved. Yet, it is still elec­ states. Each Center is equipped with the
tronic equipment and will need adjustment latest electronic test and adjustment equip­
and service from time to time. In fact, the ment, and staffed by skilled, factory-trained
FCC insists on periodic frequency and technicians licensed by the FCC.
transmitter deviation measurements.
For more information about the MASTR
Personal Series, call your GE Communica­
To provide you with this service, General tions Consultant listed in the Yellow Pages
Electric has many hundreds of authorized under “Radio Communications,” or write:

GENERAL ELECTRIC

MOBILE RADIO DEPARTMENT
Lynchburg, Virgi nia 24502 Cable GECOMPROD

ECR-1518 5/69 PRINTED IN U.S.A.
