P. 11

Vol. 1

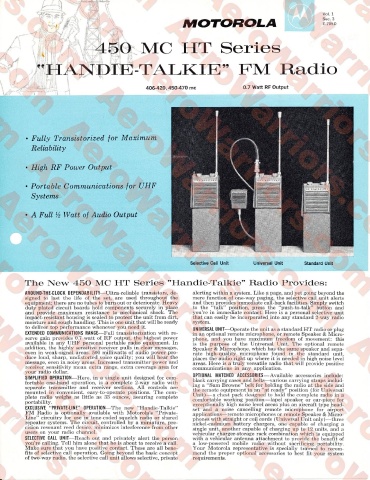

                                                             MOTOROLA                                       Sec. 3
                                                                                                            E-705D


                                450 MC HT Series


             "HANDIE-TALKIE” FM Radio



                                                 406-420, 450-470 me             0.7 Watt RF Output








          •  Fully Transistorized, for Maximum
           Reliability


         •  High RF Power Output


         •  Portable Communications for UHF
           Systems


         •  A Full J/2 Watt of Audio Output








                                                                Selective Call Unit  Universal Unit   Standard Unit


         The New 450 MC HT Series "Handie-Talkie” Radio Provides:
         AROUND-THE-CLOCK DEPENDABILITY—Ultra-reliable transistors, de­  alerting within a system. Like a page, and yet going beyond the
         signed to last the life of the set, are used throughout the   mere function of one-way paging, the selective call unit alerts
         equipment; there are no tubes to burn out or deteriorate. Heavy   and then provides immediate call-back facilities. Simply switch
         duty plated circuit boards hold components securely in place   to the “talk” position, press the “push-to-talk” button and
         and provide maximum resistance to mechanical shock. The   you’re in immediate contact. Here is a personal selective unit
         impact-resistant housing is sealed to protect the unit from dirt,   that can easily be incorporated into any standard 2-way radio
         moisture and rough handling. This is one unit that will be ready   system.
         to deliver top performance whenever you need it.        UNIVERSAL UNIT—Operate the unit as a standard HT radio or plug
         EXTENDED COMMUNICATIONS RANGE—Full transistorization with re­  in an optional remote microphone, or remote Speaker & Micro­
         serve gain provides 0.7 watt of RF output, the highest power   phone, and you have maximum freedom of movement: this
         available in any UHF personal portable radio equipment. In   is the purpose of the Universal Unit. The optional remote
         addition, the highly sensitive receiver pulls in clear messages,   Speaker & Microphone, which has the same speaker and sepa­
         even in weak-signal areas. 500 milliwatts of audio power pro­  rate high-quality microphone found in the standard unit,
         duce loud, sharp, undistorted voice quality; you will hear the   places the audio right up where it is needed in high noise level
         message, even in noisy areas. Increased transmitter power and   areas. Here is a truly versatile radio that will provide positive
         receiver sensitivity mean extra range, extra coverage area for   communications in any application.
         your radio dollar.
         SIMPLIFIED OPERATION—Here, in a single unit designed for com­  OPTIONAL MATCHED ACCESSORIES—Available accessories include:
         fortable one-hand operation, is a complete 2-way radio with   black carrying cases and belts—various carrying straps includ­
                                                                 ing a “Sam Browne” belt for holding the radio at the side and
         separate transmitter and receiver sections. All controls are   the remote equipment in an “at ready” position (for Universal
         mounted in convenient, easy-to-operate positions. The com­
         plete radio weighs as little as 33 ounces, assuring complete   Unit) — a chest pack designed to hold the complete radio in a
         portability.                                            comfortable working position—lapel speaker or ear-piece for
                                                                 exceptionally high noise level areas plus an aircraft type head­
         EXCLUSIVE “PRIVATE-LINE” OPERATION—The new “Handie-Talkie”   set and a noise cancelling remote microphone for airport
         FM Radio is optionally available with Motorola’s “Private-   applications—remote microphones or remote Speaker & Micro­
         Line” circuitry for use in tone-coded squelch radio or shared   phones with straight or coil cords (Universal Unit only)—three
         repeater systems. The circuit, controlled by a miniature, pre­  nickel-cadmium battery chargers, one capable of charging a
         cision resonant reed device, minimizes interference from other   single unit, another capable of charging up to 12 units, and a
         users on your radio channel.                            vehicular charger-storage rack combination which is equipped
         SELECTIVE CALL UNIT—Reach out and privately alert the person   with a vehicular antenna attachment to provide the benefit of
         you’re calling. Tell him alone that he is about to receive a call.   a low-powered mobile radio without sacrificing portability.
         Make sure that you have positive contact. These are all bene­  Your Motorola representative is specially trained to recom­
         fits of selective call operation. Going beyond the basic concept   mend the proper optional accessories to best fit your system
         of two-way radio, the selective call unit allows selective, private  requirements.
