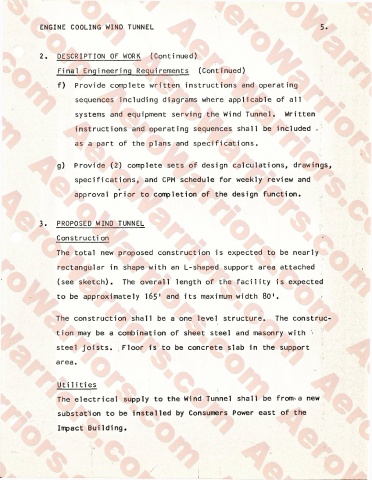

ENGINE COOLING WIND TUNNEL 5.

DESCRIPTION OF WORK (Conti nued)

Final Engineering Requirements (Continued)

f) Provide complete written instructions and operating

sequences including diagrams where applicable of all

systems and equipment serving the Wind Tunnel. Written

instructions and operating sequences shall be included .

as a part of the plans and specifications.

g) Provide (2) complete sets of design calculations, drawings,

speci fi cations, C D C O CPM schedule for weekly review and

approval prior to completion of the design function.

PROPOSED WIND TUNNEL

Constructi on

The total new CL. roposed construction is expected to be nearly

rectangular in shape with an L-shaped support (U rea attached

(see sketch). The overall length of the facility is expected

to be approximately 165' and its maximum width 80'.

The construction shall be a one level structure. The construe

tion may be a combination of sheet steel and masonry with '■

steel joists. Floor is to be concrete slab in the support
area.

Utilities

The electrical supply to the Wind Tunnel shall be from'a new

substation to be installed by Consumers Power east of the

Impact Building.
